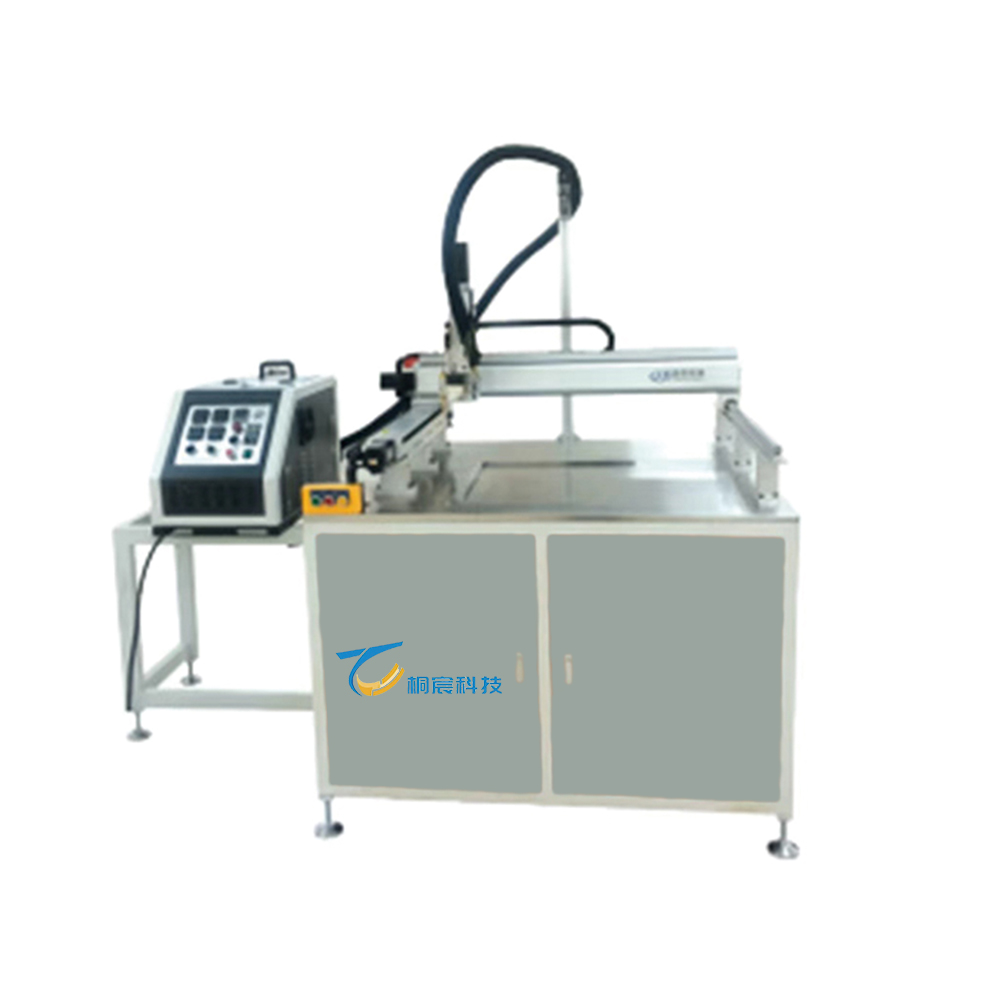

آلة التوزيع ثلاثية المحاور هي نظام توزيع سوائل أوتوماتيكي عالي الدقة، مصمم لتطبيق الغراء بدقة متناهية على مختلف المنتجات الصناعية. بفضل دقة تكرار تصل إلى 0.05 مم وحركة XYZ عالية السرعة، تضمن أداءً مستقرًا وفعالًا ومتسقًا في توزيع المواد اللاصقة في مجالات الإلكترونيات والفلاتر والبلاستيك وتصنيع الأتمتة.
بفضل هيكلها المقوى، ومحاورها المطلية بالكهرباء، ونظام التحكم عالي السرعة، ونظام التشغيل باللغة الصينية، تضمن هذه الآلة الموثوقية وسهولة التشغيل.
الطلب (الحد الأدنى للكمية) :
1قسط :
FOBمنشأ المنتج :
China Anhui Bengbuميناء الشحن :
Shanghai / Qingdao /Nanjing / Yiwuمهلة :
15Days

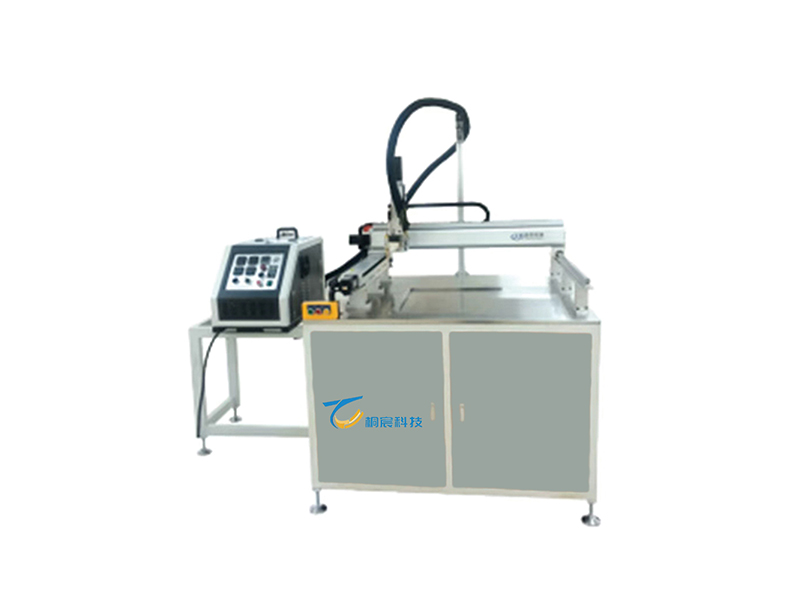

The Three-Axis Automatic Dispensing Machine is engineered for precise, programmable glue dispensing in high-demand production environments. Featuring a maximum stroke of 1000 × 600 × 150 mm, 0.05 mm positioning accuracy, a durable mechanical structure, and flexible control functions, this system delivers stable and repeatable results even in continuous operation.
Whether for linear dispensing, curve dispensing, point dispensing, sealing, or bonding applications, this equipment provides a cost-effective and high-performance solution for automated adhesive application.
Main Features
Three-axis motion with 1000 × 600 × 150 mm working range
High repeatability of 0.05 mm, suitable for precision glue application
High speed up to 800 mm/s for improved productivity
Supports diverse dispensing paths: points, lines, curves, circles
10 kg glue dispensing capability with 2.5 m glue hose
Durable electroplated hard-chrome shafts for long service life
Reinforced baked-enamel frame for enhanced stability
Equipped with photoelectric limit switches, coupling, and drag chain
User-friendly Chinese operating system
Easy maintenance with accessible instrument layout
Advantages
Stable and precise dispensing due to high repeatability
Strong mechanical rigidity ensures vibration-free high-speed operation
Efficient production with fast XYZ movement
Long-lasting components due to chrome-plated shafts and anti-rust treatment
Simple operation suitable for new and experienced operators
Flexible customization for glue type, nozzle, and fixture
Low maintenance thanks to modular design and accessible parts
Technical Specifications
| Item | Specification |
|---|---|
| Glue Dispenser Capacity | 10 kg |
| Glue Hose | 2.5 m |
| Glue Nozzle | 1 piece |
| Max Travel | X: 1000 mm, Y: 600 mm, Z: 150 mm |
| Lead | X: 16 mm, Y: 16 mm, Z: 10 mm |
| Repeatability | 0.05 mm |
| Max Speed | 800 mm/s (XYZ axis) |
| Max Load | 5 kg |
| Safety Components | Limit photoelectric switches, coupling, drag chain |
| Operating System | Chinese system |
| Mechanical Components | Shafts: hard-chrome plating; Frame: reinforced baked enamel; Others: oxidized blackening |
| Instrumentation | Installed rationally for easy disassembly |
Applications
The Three-Axis Dispensing Machine is widely used in:
Electronics manufacturing (PCBs, components, mobile devices)
Air filter & HEPA filter sealing and bonding
Automotive components gluing
Plastics and hardware adhesive processes
LED and lighting module potting & sealing
Small appliance sealing lines
Precision bonding in automation production lines
Packaging and product assembly
Suitable for industries such as electronics, filtration, hardware, automotive, household appliances, and automation manufacturing.
Our Packing
Why Choose Us?
Professional manufacturing experience in dispensing and automation equipment
High-precision CNC machining and quality control
Stable servo and mechanical system design
Customizable platform size, glue pump, nozzle, and software
Reliable after-sales support including installation & training
Durable industrial-grade structure ensures long-term operation
Competitive pricing from direct factory supply
Fast delivery with in-stock core components
